WMS on HPC - Nextflow with Slurm Job Array

Nextflow on a shared HPC Cluster

Nextflow acts as a middle layer between the user and the job scheduler Slurm. Nextflow v24.04.0 and newer offers native support for job arrays for grid schedulers, but it’s an “experimental” feature as stated on their doc and still under development.

Terms:

Below is an example of how a multi-step Nextflow-based workflow interacts with Slurm. Source: USRSE’25 paper

image info

Problems

  1. Rapid fairshare score consumption & difficulty of backfilling child jobs

    → increased waiting time

    → increased time for the main job

    → main job crashes due to timeout

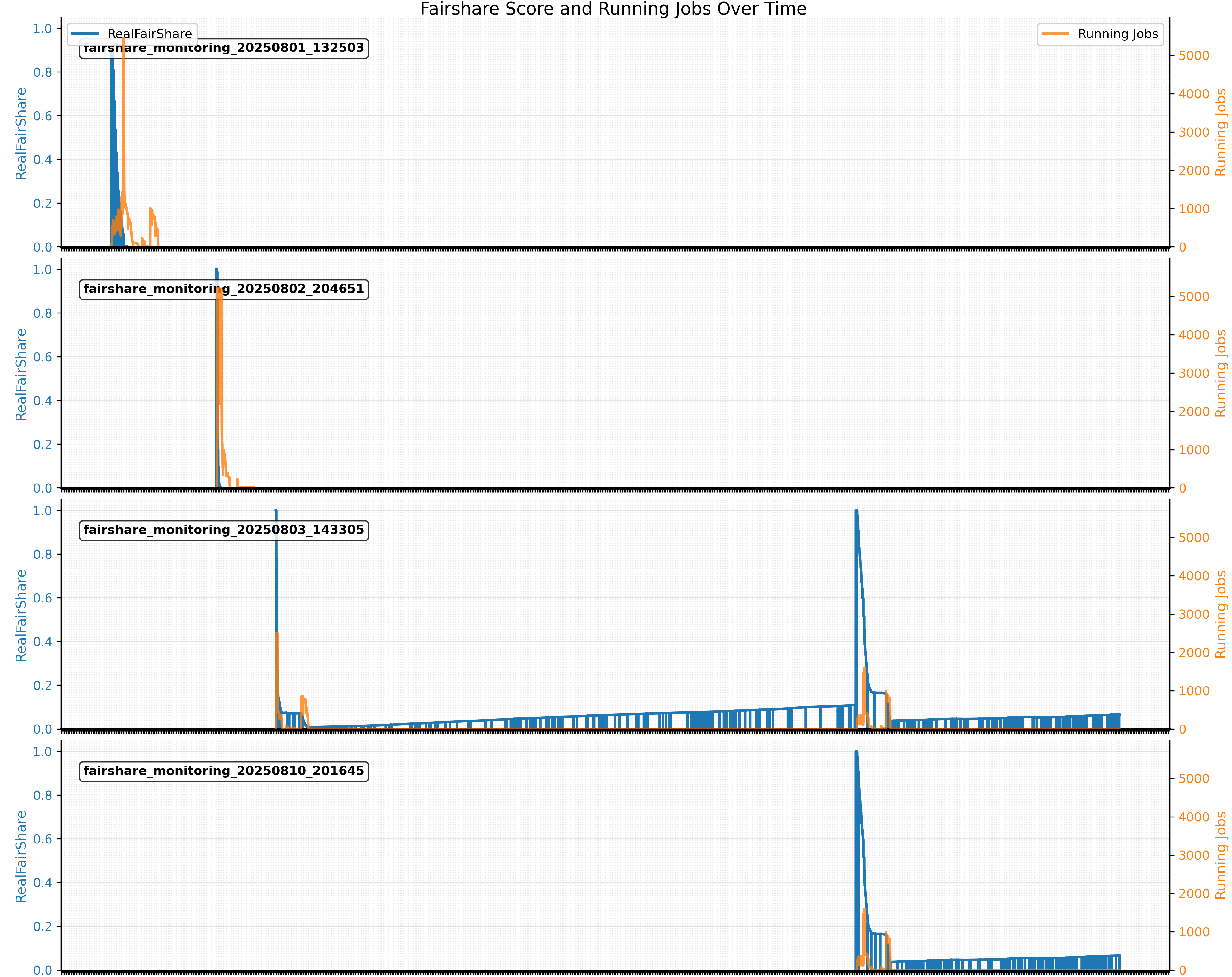

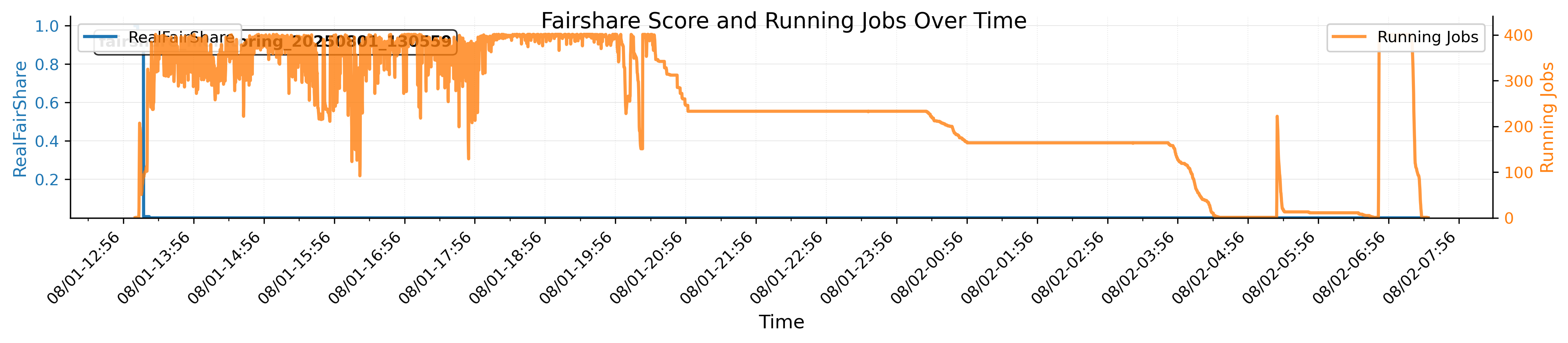

    Because the fairshare score will drop to zero very fast, so the child jobs have to use the backfilling mechanism of Slurm.

image info image info

  1. Intolerance of the child job failures

    → main job crashes

    Below is an example of how a child job can crash the main job (many ways).

image info

Solution / Best Practices

  1. Reduce child job size (time, memory, cores)
    • Similar to finding the appropriate amount of resources for a job/ job array
    • seff
  2. Retry mechanism
    • Retry on the 140 error code for “not enough resources”
    • Retry 3 times regardless of the error code
  3. Dynamic resource allocation
    • Retry with more resources
  4. Enable the report & job array feature
    • Produce job statistics reports for each job step → help #1
    • Submit child jobs in batches of job arrays
  5. Gracefully end the child jobs
    • Send the end signal before the due time
    • Usually default, but the clusterOptions param can cause problem.

  6. Reduce queueSize and array size during test runs

  7. Consider Phx for CPU-intensive workflow

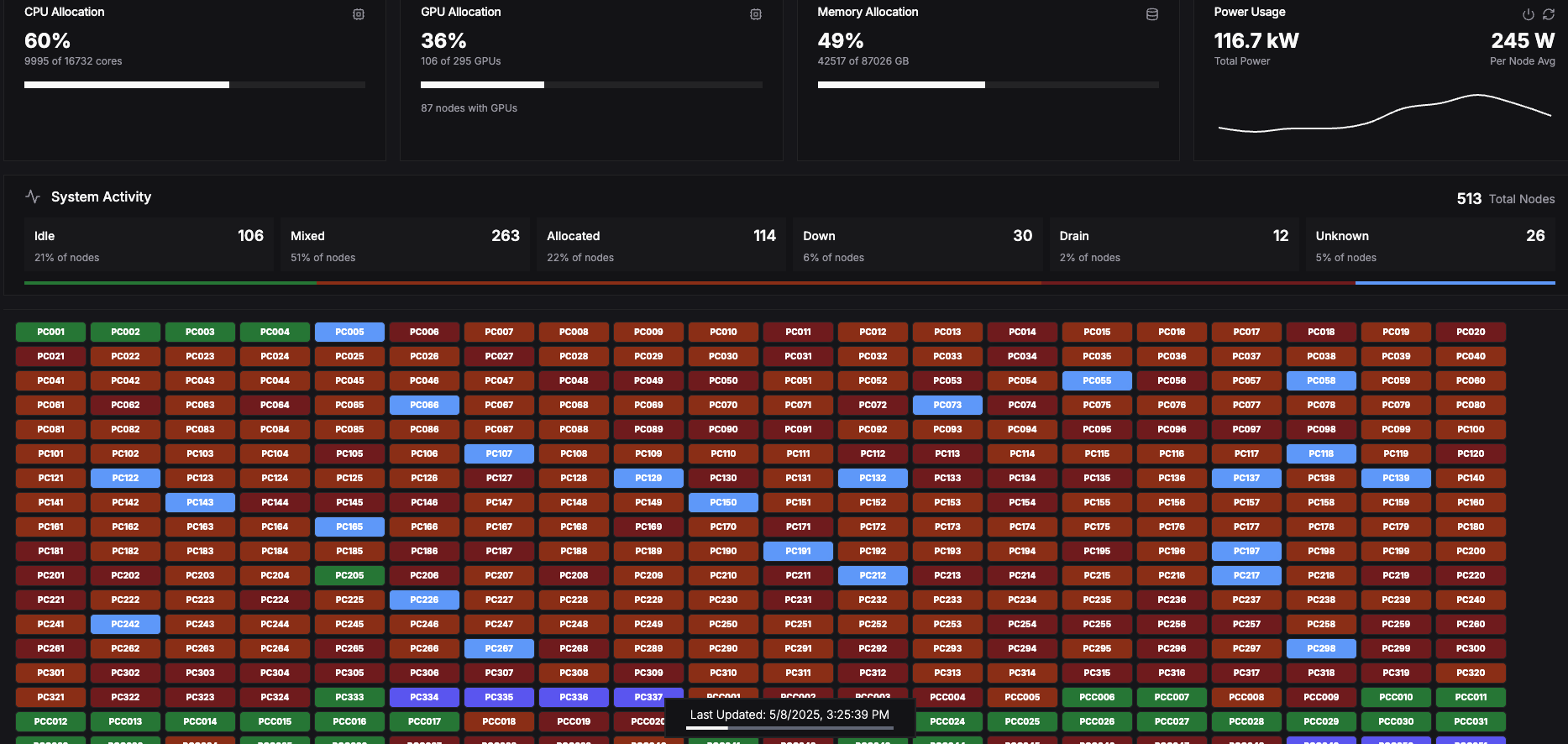

    Below is a screenshot of the Phx supercomputer when an efficient Nextflow workflow was running and taking up most of the public CPU nodes.

image info

Benchmarking Results for using or not using the Job Array feature

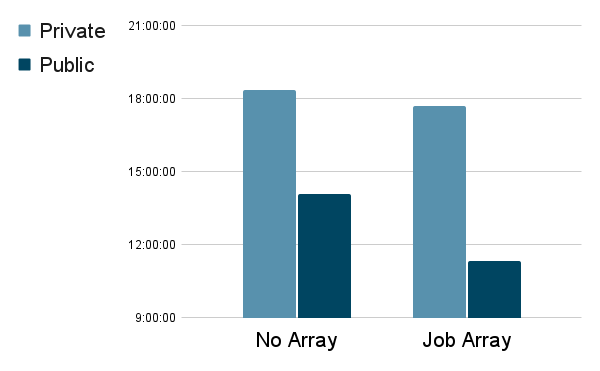

  1. Below is the total job walltime measured on the main job.

image info

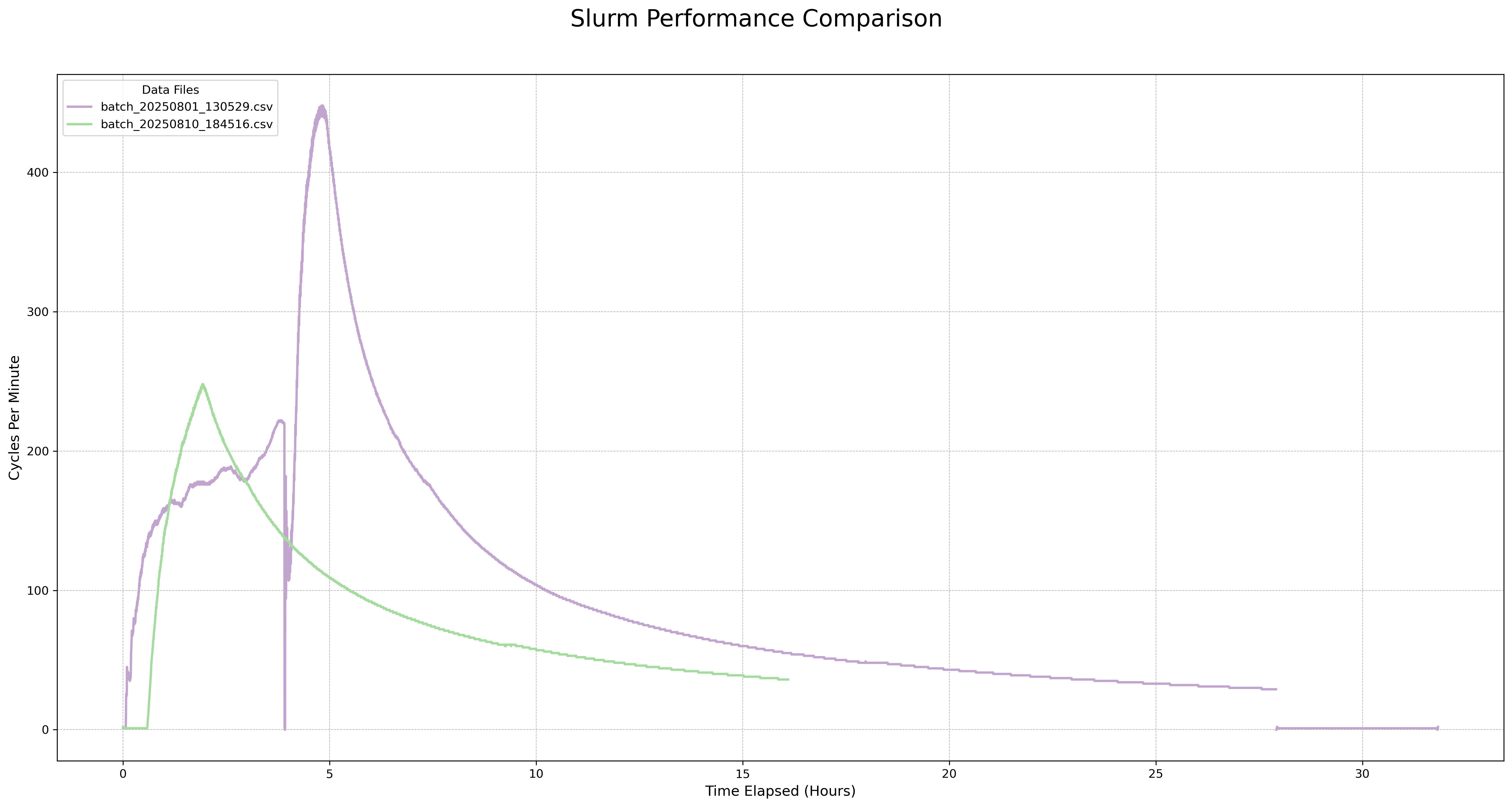

  1. Below is the slurm stress level (slurm cycles) on a private cluster:

image info

Coding Example

Using nextflow.config to control the workflow settings:

  1. Edit the config file directly
  2. Use a Python wrapper to generate a config file
// Nextflow config for lastz jobs
executor {
    queueSize = 10000                     // default: 100, how many living jobs (pending or running) slurm will hold all the time for a main job. Nextflow dev is working on fixing some small bugs around this parameter.
    retry.maxAttempt = 3                  // default: 3, for slurm to resubmit any jobs.
    killBatchSize = 1000000               // default: 100
}

process {
    executor = 'slurm'                    // using "local" on a single node will mimic the workstation setting
    memory = { 4.GB * task.attempt }      // dynamic allocation
    time = { 1.hour * task.attempt }      // dynamic allocation
    queue = 'public'
    cpus = 1
    array = 2000                          // how many sub-jobs a job array will hold, must be int, cannot be a variable
    maxRetries = 5                        // for nextflow to retry a child job.
    errorStrategy = 'retry'
    maxErrors = '-1'                      // total errors a job step can have, "-1" to be unlimited
    clusterOptions = '--signal=USR2@180'  // early stop
}
  1. How to calculate the queueSize and the array size
Phx cluster

public/public, pc[005-337]
total CPU = 333*28 = 9324 --> queueSize = 10000
memory per node --> can support the queueSize
	122G/4 = 30 jobs, 30 jobs * 293 = 8790 jobs
	249G/4 * 36 = 62 * 36 = 2232 jobs
	184G/4 * 4 = 46 * 4 = 184 jobs
Array size = 2000

make_lastz_chains

USRSE’25 paper

Implementation of make_lastz_chains on the Phx cluster

Nextflow official training doc

Nextflow doc
